Manual Screen Printing Machine for Cups, Cylinder Screen Printing for Mugs 170Mm Curved Press for DIY Printing Hobby Screen Printing Kit for Bottles
Product details
| Management number | 222151116 | Release Date | 2026/05/04 | List Price | $35.84 | Model Number | 222151116 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Color: BlueMaterial: Steel, Stainless Steel, Rubber, PVC, Nylon, AluminumProcess: Electrostatic Spraying, Galvanizing, Nickel PlatingMount Type: TabletopAssembly Required: YesOperation Method: ManualSuitable Printing Picture Size: 20*15cm/7.87*5.91inVertical Adjusting Range: 20cm/7.87inSuitable Printing Screen Outer Size: Within 26*45cm/10.24*17.72inSuitable Printing Screen Thickness: Within 3.5cm/1.38inSuitable Cylindrical Diameter: Within 17cm/6.69inFixing Aluminum Strip Left/Right Movement Range: 29cm/11.42inU-shaped Hole Spacing: 1.5cm/0.59inEach Metal Roller Diameter: 1.9cm/0.75inEach PVC Roller Diameter: 5cm/1.97inEach Nylon Roller Diameter: 2.5cm/0.98inSuitable Scraping Board Length: Within 20cm/7.87inMax. Bearing Installation Rack Movable Distance(Front and Back): 16cm/6.3inExtra Installation Rack Vertical Movement Distance: 2cm/0.79inScraper Rack Left/Right Movable Distance: 25cm/9.84inSuitable Screen Frame Width/Thickness: Within 3.5cm/1.38inProduct Size: 39*39*30cm/15.35*15.35*11.81inPackage Size: 45*47*18cm/17.72*18.5*7.09inGross Weight: 7.6kg/16.76lbsNet Weight: 5.89kg/12.99lbs
- User-friendly Design: The product adopts a left and right push-pull structure, you can adjust the mounting parts according to your preferred hand and usage habits to facilitate left-handed or right-handed operation.

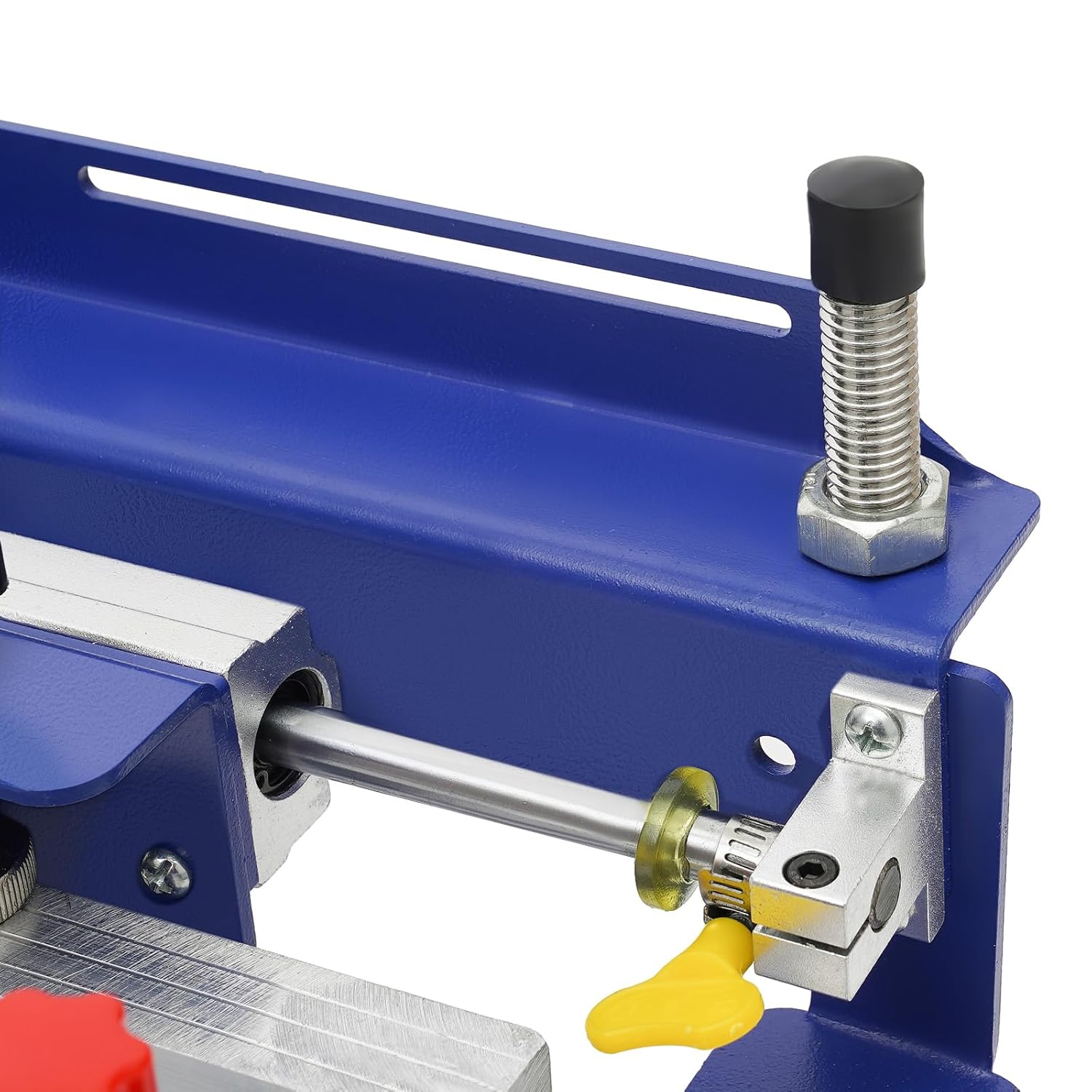

- Helpful Assistant: This product is equipped with a flexible and fixed aluminum bar, and 19 U-shaped holes on one side of the fixed base with a spacing of 0.59 inches. It can hold up to 6.69-inch diameter cylinders, allowing you to print cups, bottles, etc. of different sizes.
- Highly Flexible: The movable scraper frame (9.84 inches left and right), bearing mounting holder (6.3 inches front and back), and 7.87 inches adjustable height allow this product to print patterns up to 7.87* 5.91 inches
- 3 Types of Bearings: The product comes with metal bearing rollers, nylon bearing rollers, and PVC bearing rollers, which can meet your different needs.
- Thoughtful Design: The product is equipped with an impact-absorbing rubber ring
| Color | Blue |
|---|---|
| Model | FG4R1 |
| Brand Name | LIECARYAM |
| Unit Count | 1.0 Count |
| Part Number | FG4R1 |
| Print media | Unknown |
| Manufacturer | LIECARYAM |
| Material Type | Steel, Stainless Steel, Rubber, PVC, Nylon, Aluminum |
| Operation Mode | Manual |
| Active Surface Area | 10.24" x 17.72" |
| Included Components | Manual Screen Printing Machine For Cups |
