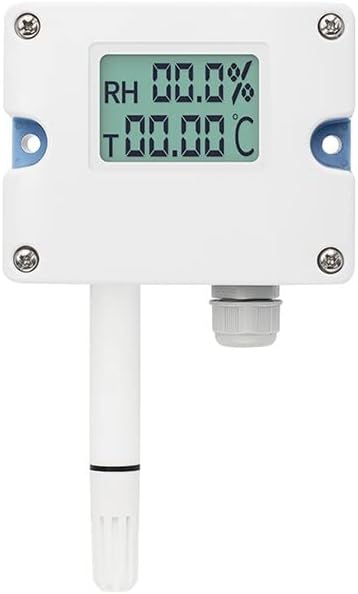

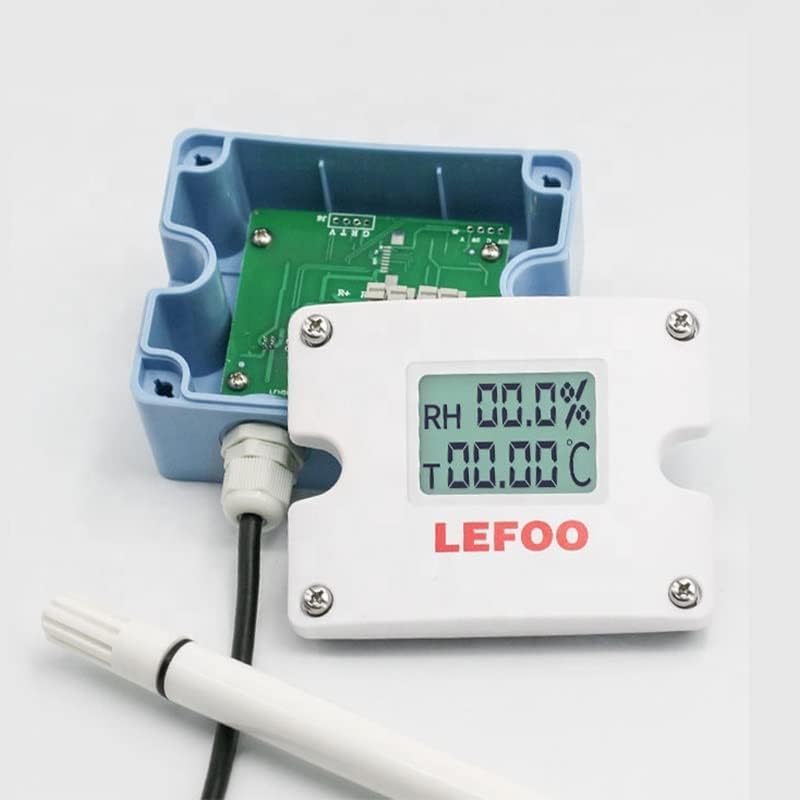

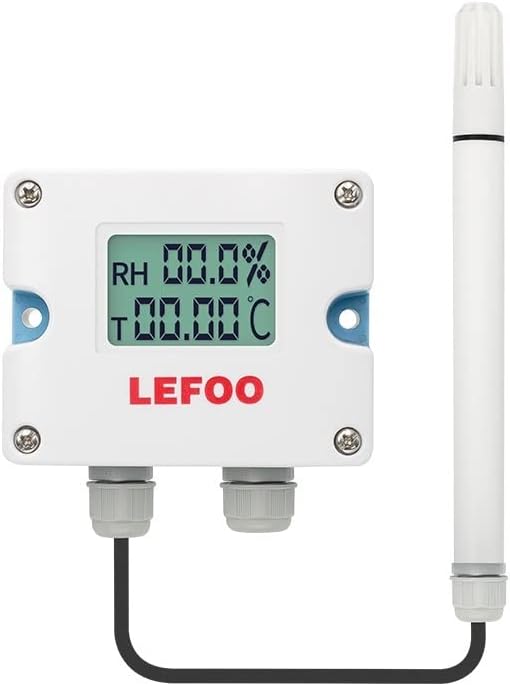

Digital Tester LCD Digital Screen Humdity Transducer 4-20mA Output Temperature and Humidity Transmitter Sensor (Color : Ducted Type)

Technical Paraments(1)Relative HumidityTransducer：DigitalMeasurement Range：0%~100%RHOutput：RS485/Modbus,0-10VDC,4-20mA optionalAccuracy：±3%@25&60RHResponse Time：10s25Cslow flow air(2)TemperatureTransducer：Digital or thermal resistance see Models Selection TableMeasurement Range：050,-20~60Output：4-20mA,0-10VDC,RS485/Modbus optionalThermal Resistance：See Models Selection Table and Thermal Resistance Index TableAccuracy：Digital type:±0.5C@25Thermal resistance type:±0.2~0.4C@25CPower Supply：Voltage Type/485 type: 15~35VDCCurrent Type: 18.5~35VDC (RL=500Q)/8.5~35VDC(RL=0Q)Output Load：500Q(CurrentType),2KQ(Voltage Type)Display：LCD display optional, with unit display and backlight(4-20mA output without backlight)Case Material：PC case, PC probe, Polymer filter (stainless probe andstainless filter optional)Work Temperature：-20-60C,5%-95%RH(non-condensing)Protection Grade：IP65

• A variety of installation methods and output methods are optional
• The shell design is light and beautiful, with LCD backlight temperature and humidity dual display
• The power supply and output have over-voltage and reverse connection protection, with a high protection grade IP65
• Adopt high-precision sensors and main control, with good long-term stability and anti-interference ability
